Safe & Speedy Transport
- SC type construction hoists (outdoor elevators) provide safe and speedy vertical transport.
- Suspension cage moves along a guide bracket braced upon the foundation.
- Smooth movement for both personnel and materials.
Rack & Pinion Mechanism
- Reliable rack and pinion gear mechanism for efficient ascension and descension.
- Allows stopping precisely at the desired floor.
- Highly reliable, efficient, and energy-saving.
Optimal Safety Devices
- The machine does not start until entry and exit gates are fully closed.
- Equipped with the most optimal safety devices to prevent cage falling accidents.
- Operation central system located safely inside the cabin.
People-Based Design
- Fundamentally improved operator's and passengers' comfort.
- Features user-friendly design drawings with safety, reliability, and aesthetics in mind.
Single Cage Standard Speed
| Model | Speed m/Min | Capacity(Kgs) | Motor(kw) | Cabin Size (LxWxH in M.) |
|---|---|---|---|---|
| SC-100 | 36 | 1000 | 1 x 11 kw | 2 x 1.2 x 2.2 |
| SC-150 | 36 | 1500 | 2 x 9.2 kw | 2.5 x 1.2 x 2.2 |
| SC-200 | 36 | 2000 | 3 x 9.2 kw | 3 x 1.2 x 2.2 |
| SC-300 | 36 | 3000 | 3 x 11 kw | 3.5 x 1.2 x 2.2 |
Twin Cage Standard Speed
| Model | Speed m/Min | Capacity(Kgs) | Motor(kw) | Cabin Size (LxWxH in M.) |
|---|---|---|---|---|
| SC-100 | 36 | 2 x 1000 | 2 x 1 x 11 kw | 2 x 1.2 x 2.2 |
| SC-150 | 36 | 2 x 1500 | 2 x 2 x 9.2 kw | 2.5 x 1.2 x 2.2 |
| SC-200 | 36 | 2 x 2000 | 2 x 3 x 9.2 kw | 3 x 1.2 x 2.2 |
| SC-300 | 36 | 2 x 3000 | 2 x 3 x 11 kw | 3.5 x 1.2 x 2.2 |
| Content |

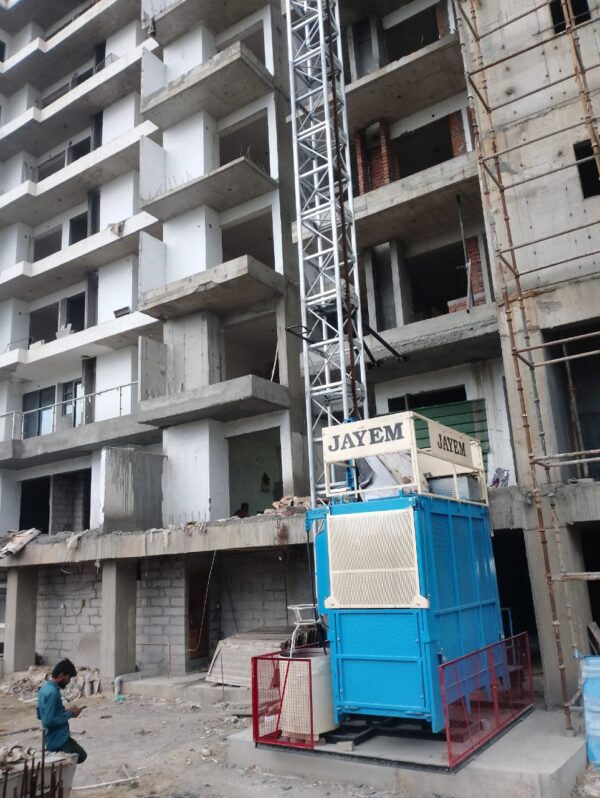

Rack & Pinion Type Material cum Passenger Hoist SC type construction hoists, commonly known as outdoor elevators, provide safe and speedy vertical transport of personnel and materials by using cages consisting of gear driving mechanisms and safety devices. A suspension cage carrying personnel or materials moves along a guide bracket braced upon the foundation and attached to the building and uses a rack to ascend, descend or stop at the desired floor. This product uses the latest design drawings and transforms the human-environmental situation under the updates model which emphasizes cargo carriage. It has fundamentally improved operator's and passengers' comfort, safety, reliability, and aesthetics, reflecting "people-based" user-friendly features. |
