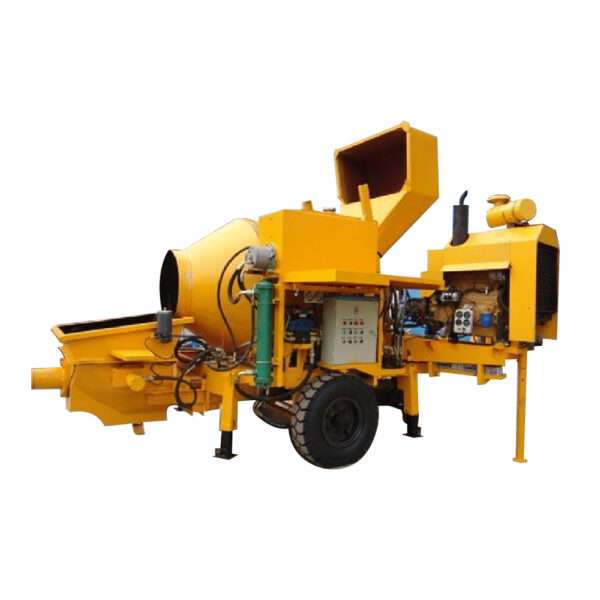

Integrated pumping with the mixing of concrete, mainly suitable for urbanization construction.
| Feature | Units | Parameters |
|---|---|---|
| Whole Performance of Machine | ||
| Max. Theo. Concrete output | M3/h | 30 |
| Mixer | L | 1050 |
| Max. Concrete pumping pressure | MPa | 10 |
| Delivery height and horizontal distribution | - | 60m/240m |
| Distribution value | - | S-value |
| Main Hydraulic Oil Pump | - | Kawasaki/Rexroth |
| Double Gear Pump | LPM | 25 & 16 |
| Valves | - | Overflow and Directional Valves Yuken/Equivalent |
| Concrete cylinder | mm | ø 200x700 |
| Number of strokes | - | 26 per min |
| Hopper capacity | L | 500 |
| Power System | ||
| Diesel engine / electric motor | KW | 49 / 37 |
| Diesel engine model & make | - | HA494 kirloskar |
| Hydraulic hopper | - | Hydraulic pump |
| Drum drive | - | Hydraulic geared motor |
| Hydraulic System | ||
| pumping system pressure | Mpa | 31.5 |
| Mixer system pressure | Mpa | 6 |
| Capacity of oil tank | L | 300 |
| Other Parameters | ||
| Max. Aggregate diameter | mm | 30 |
| Diameter of delivery pipe | mm | ø125 |
| Dimensions (Length x width x height) | mm | 6000x2400x2850 |
| Tyre size | 2nos | 700R16 |
| Towing speed | Max | 8km/h |
| Total weight | Kg | 6500 |
| Content |
A concrete mixer pump is a type of Construction Equipment and Construction Machinery in India that combines the functions of a concrete mixer and a concrete pump. It is used for the efficient and precise mixing and pumping of concrete on construction sites. In this content, we will discuss the key features, benefits, and applications of concrete mixer pumps. Features of Concrete Mixer Pumps:
Benefits of Concrete Mixer Pumps:
Applications of Concrete Mixer Pumps:
Conclusion: |
